Overview

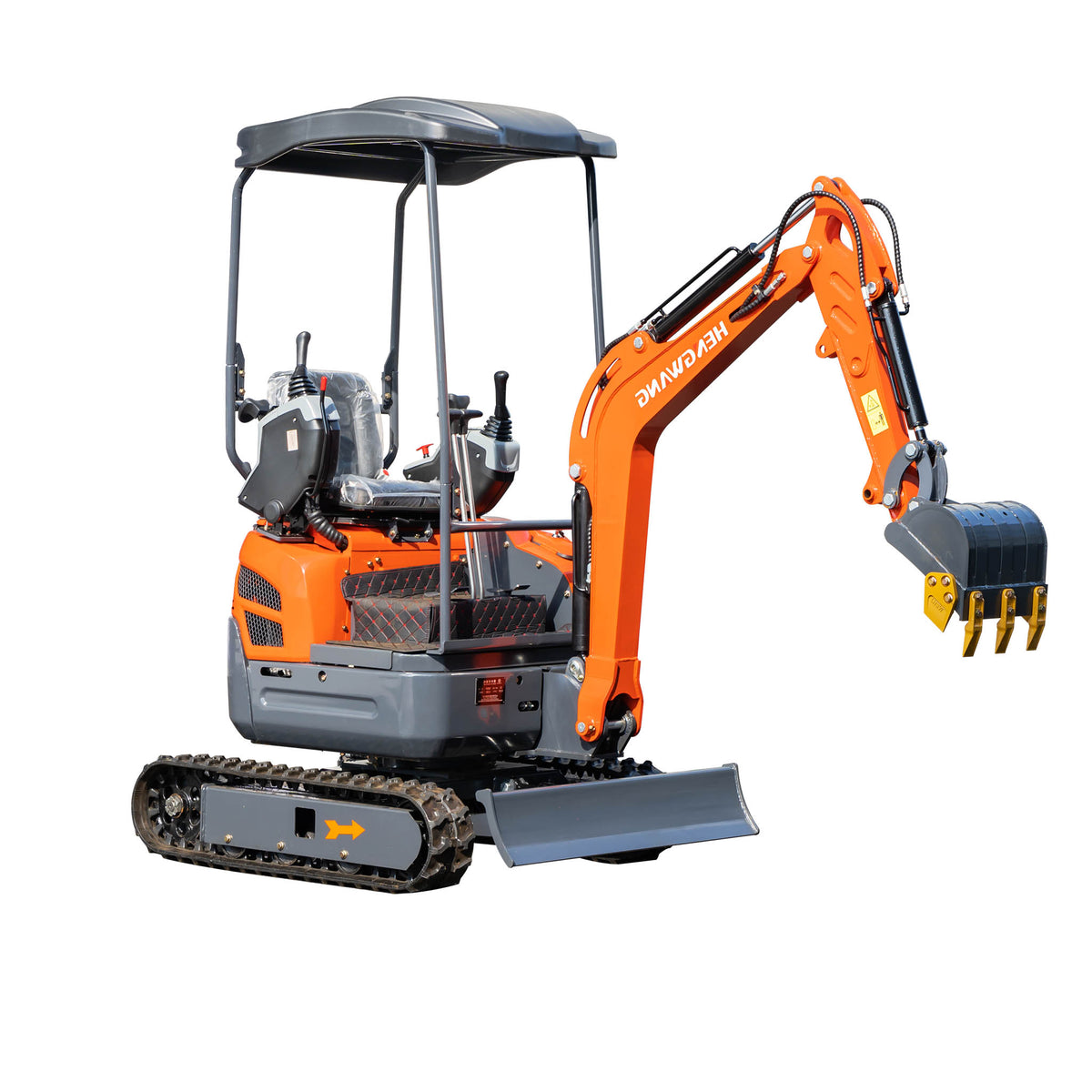

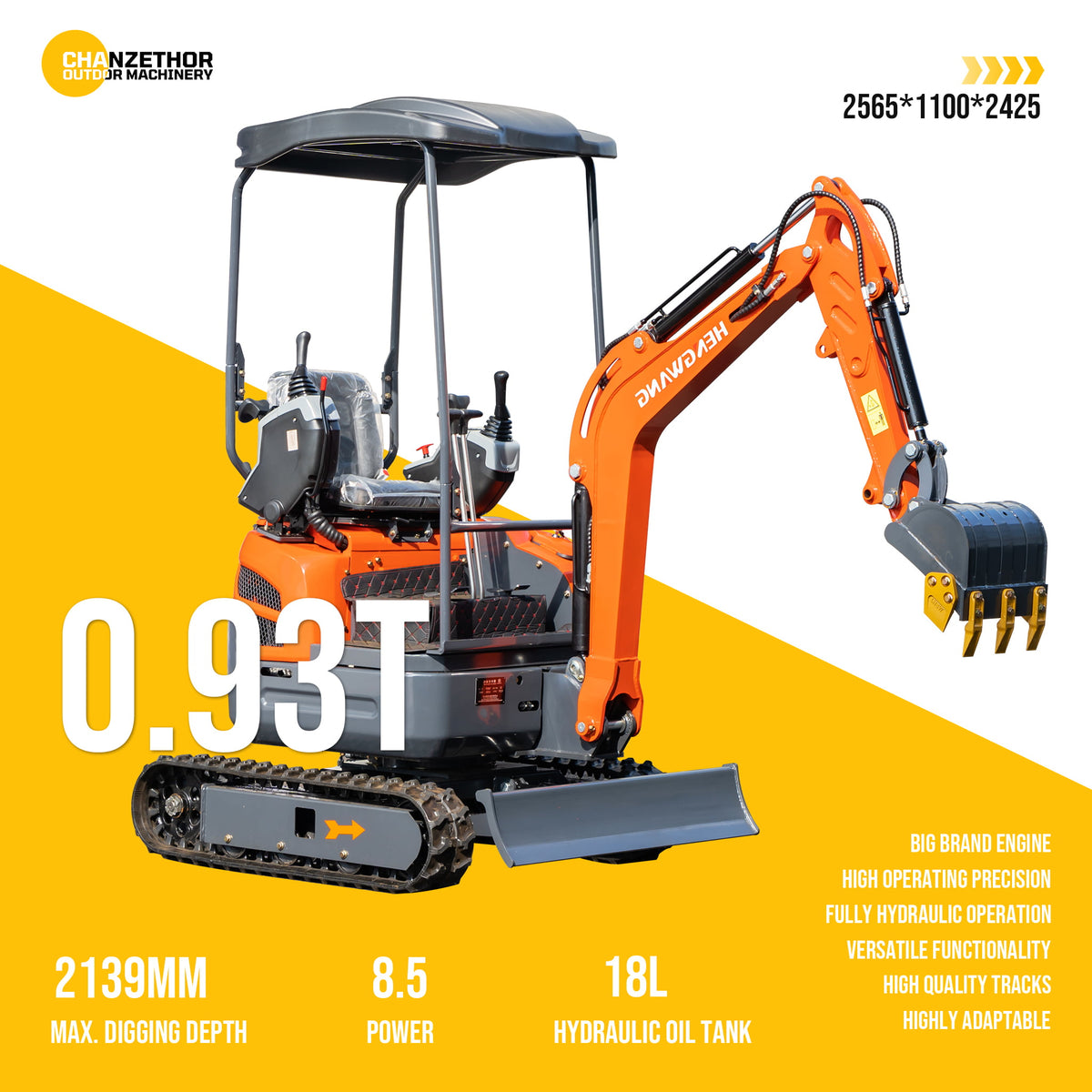

Almost a full ton. Still fits in your trailer.
The HW-16W sits right at the top of the sub-1-ton class — 0.93 tons of digging power with the maneuverability of a micro excavator. Pilot controls give you pro-level precision, and the EPA-certified gas engine keeps operation simple and emissions-compliant.
With a dig depth over 7 feet and a maximum reach of nearly 12 feet, this machine punches above its weight. Wider tracks and a longer wheelbase add stability when you're reaching out or digging at full depth.
Who is this for? Small excavation contractors who need a sub-1-ton machine that can still handle serious digging, utility companies doing trench work in residential areas, and rental operators who want a top-of-the-line micro unit.
Free shipping to commercial addresses in the contiguous US. 1-year engine warranty included.
Specifications
| Operating Weight | 0.93 T |
| Mechanical/Pilot | Pilot |
| Brand | Runtong |
| Model | R420D |
| Power | 8.5 KW |
| Emission Standard | EPA & Euro 5 |
| Hydraulic Pump Brand | Walking in Tianjin |
| Cooling Method | Air cooling |
| Fuel Type | Gasoline |
| Hydraulic Oil Tank | 18 L |
| Multi‑way Valve Brand | Taiheng |
| Engine Speed | 3600 r/min |
| Swing Motor Brand | Songheng |
| Travel Motor Brand | Songheng |
| Bucket Capacity | 0.025 m³ |
| Length × Width × Height | 2565*1100*2425 mm |
| Rubber Track | 180*72*41 mm |
| Chassis Width | 1100 mm |
| Maximum Digging Depth | 2139 mm |
| Maximum Digging Height | 2716 mm |
| Maximum Dumping Height | 1920 mm |
| Maximum Digging Radius | 3570 mm |
